In this article, we will explore the process of establishing a connection to a virtual machine situated within a private subnet without a public IP address. This method significantly enhances security by eliminating the need to expose the virtual machine to the open Internet.

Google Cloud Platform

Google Cloud offers a feature known as Identity-Aware Proxy or IAP which enable us to access Compute Engine instances without the need for public IP address.

Architecture

Steps

• Create a private compute engine

gcloud compute instances create private-instance \
  --network=NETWORK_NAME \
  --subnet=SUBNET_NAME \
  --zone=ZONE_NAME \
  --no-address

• Give the necessary permissions to the user in order to use IAP
  • IAP-Secured Tunnel User (roles/iap.tunnelResourceAccessor)
• Ensure that VPC’s firewall accepting IAP connection from the IP range 35.235.240.0/20

gcloud compute firewall-rules create allow-ssh-ingress-from-iap \
  --network=NETWORK_NAME \
  --direction=INGRESS \
  --action=allow \
  --rules=tcp:22 \
  --source-ranges=35.235.240.0/20

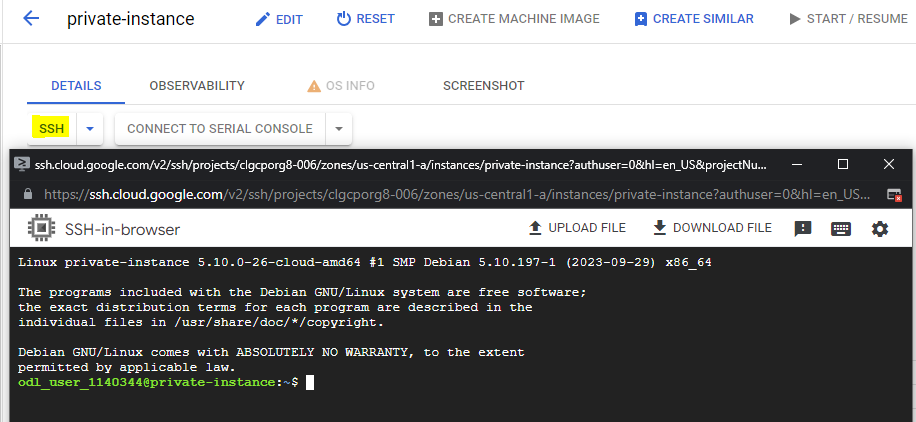

• Connect to private compute engine through IAP

Amazon Web Services

Session Manager, a feature of AWS Systems Manager (SSM), provides a secure and convenient way to access EC2 instances without relying on a public IP address.

Architecture

Steps

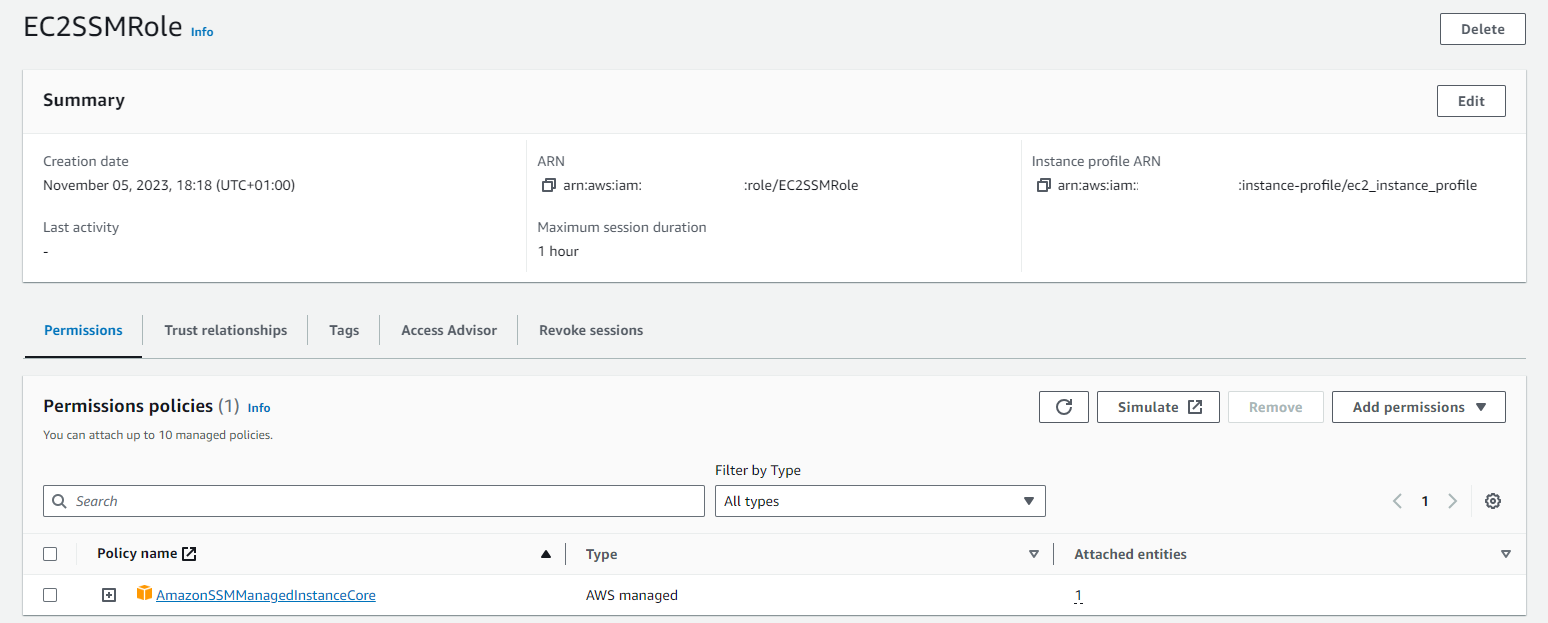

• Create an EC2 instance in a private subnet with an instance profile allowing to use SSM

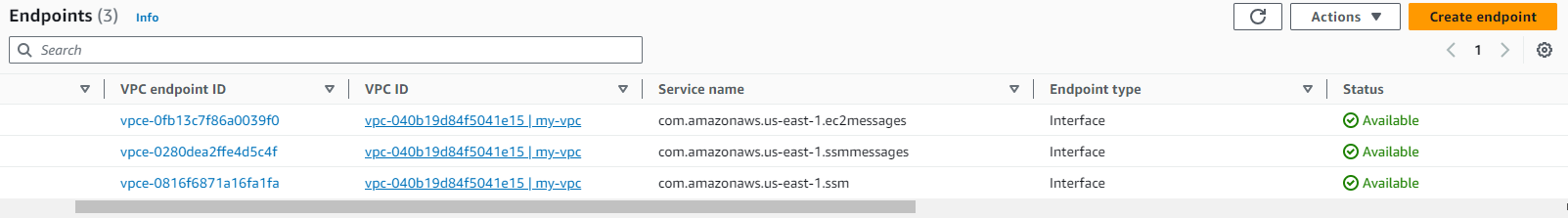

• Create 3 interfaces endpoints in the VPC
  • com.amazonaws.REGION.ssm
  • com.amazonaws.REGION.ssmmessages
  • com.amazonaws.REGION.ec2messages
• Ensure that the security group attached to EC2 instance accepting the traffic on port 443 within the VPC

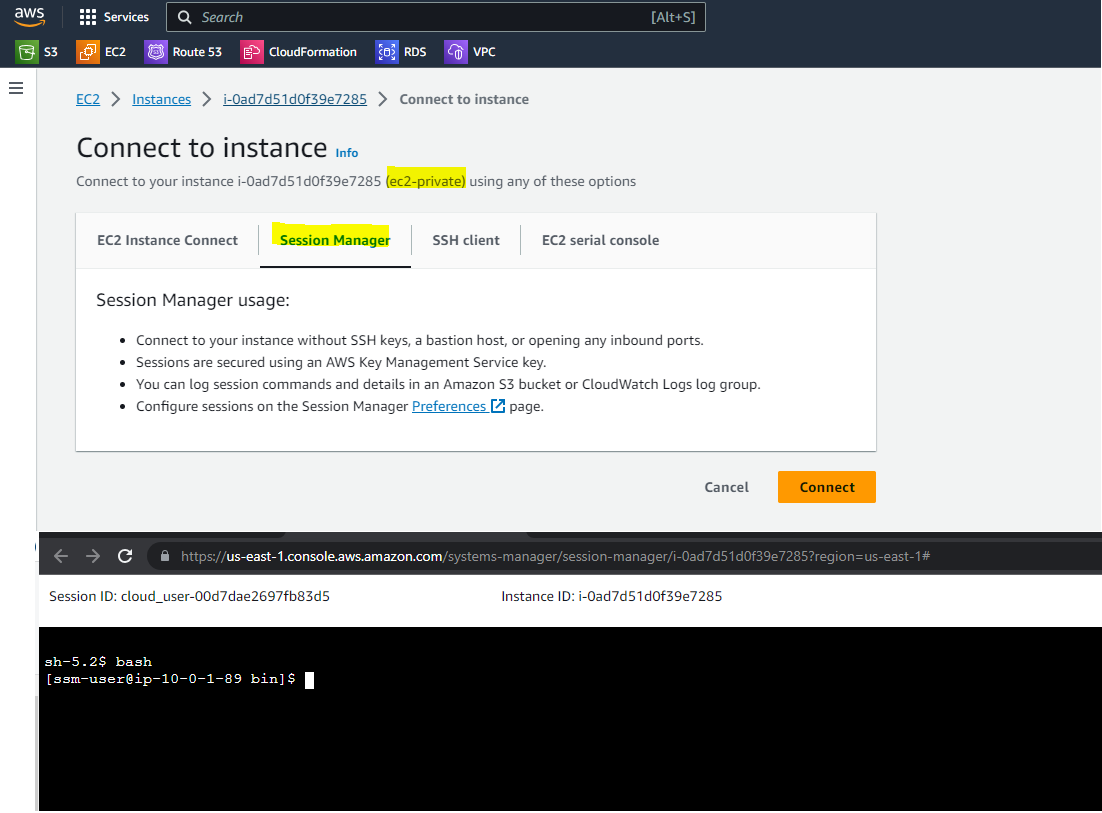

• Connect to private EC2 through Session Manager

Azure

Azure Bastion is a service offered by Microsft Azure that provides secure and streamlined remote access to virtual machines within an Azure Virtual Network. It eliminates the need for a public IP address or a VPN connection to access the virtual machines.

Architecture

Steps

• Create a private vm without public IP
• Configure Azure Bastion
  • Azure Bastion will be deployed into a dedicated subnet called “AzureBastionSubnet”
  • The pricing is available here

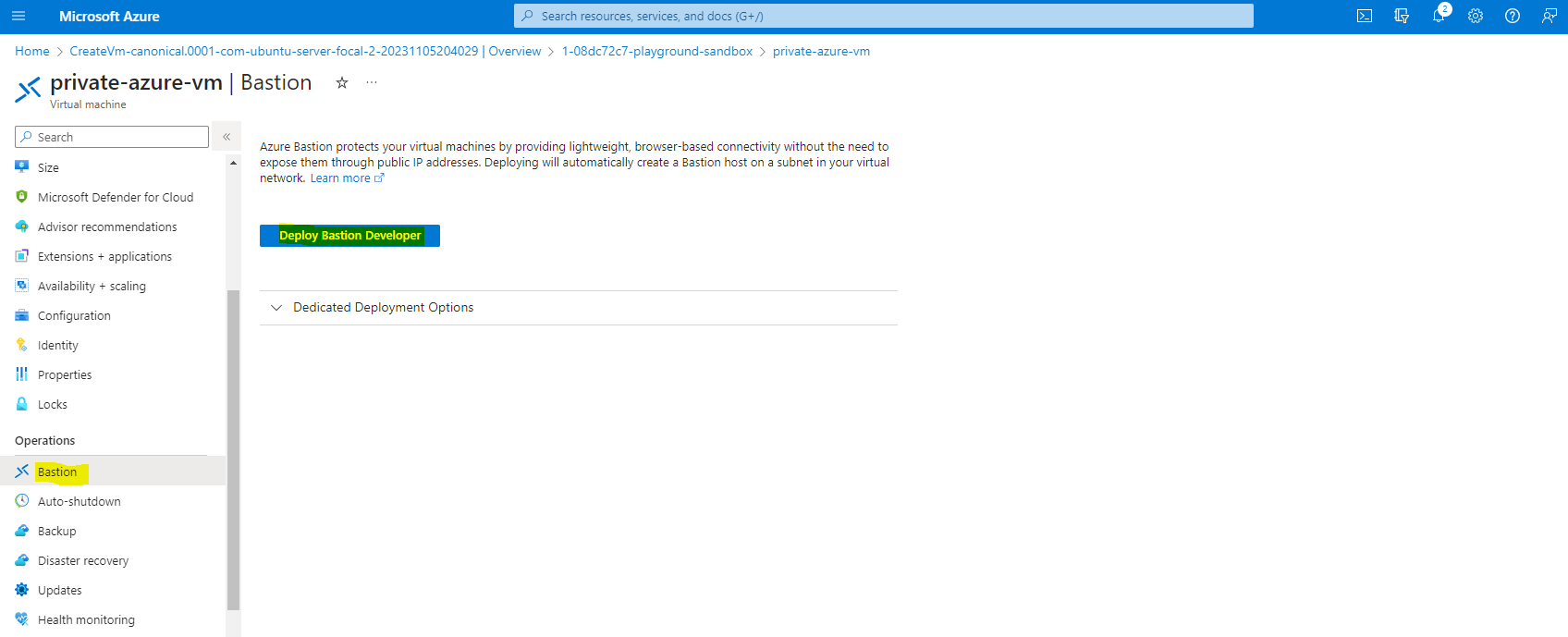

  • A new SKU (Azure Bastion Developer) is recently released. This SKU is ideal for Dev/Test (lightweight, lower-cost).
• Connect to private vm through Azure Bastion

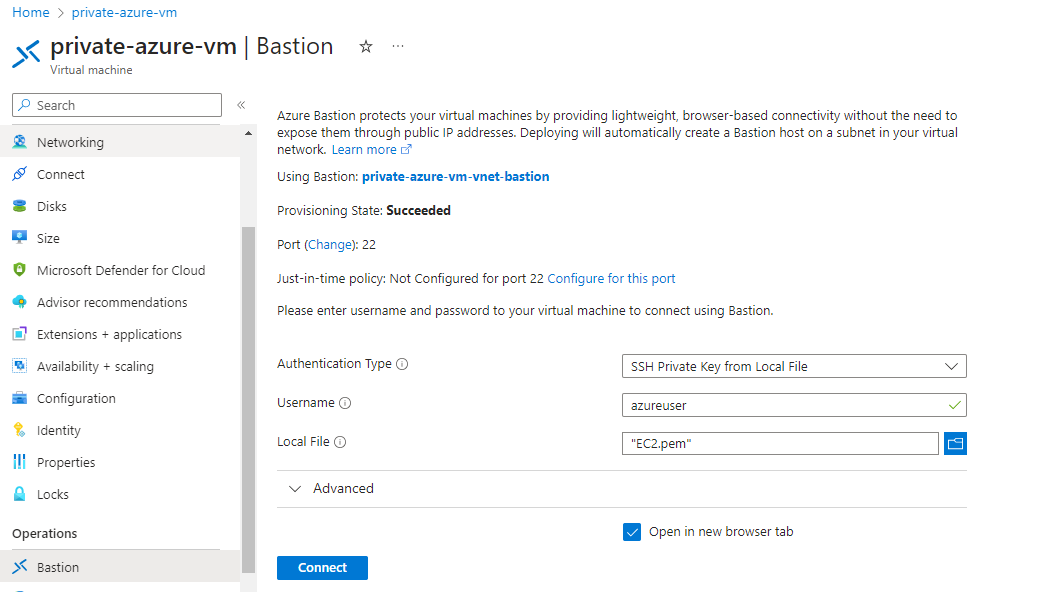

  • From Azure Portal, choose the suitable authentication method and then click the Connect button

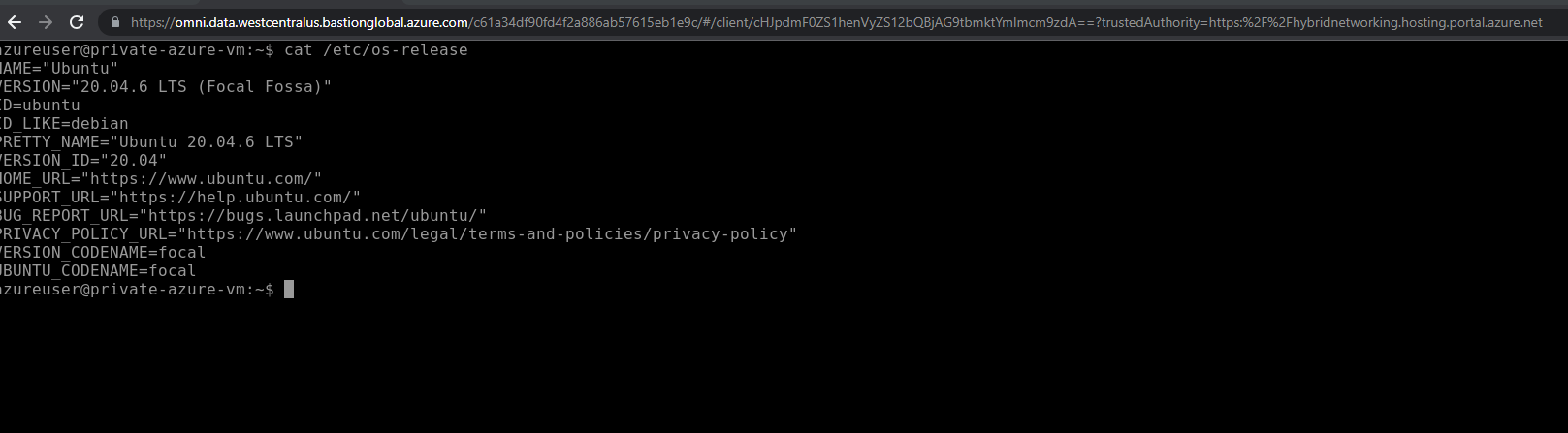

  • Private Virtual Machine is connected through Azure Bastion. No public IP or inbound rule is required
